Bus Cable for CAN (DeviceNet, CANopen)

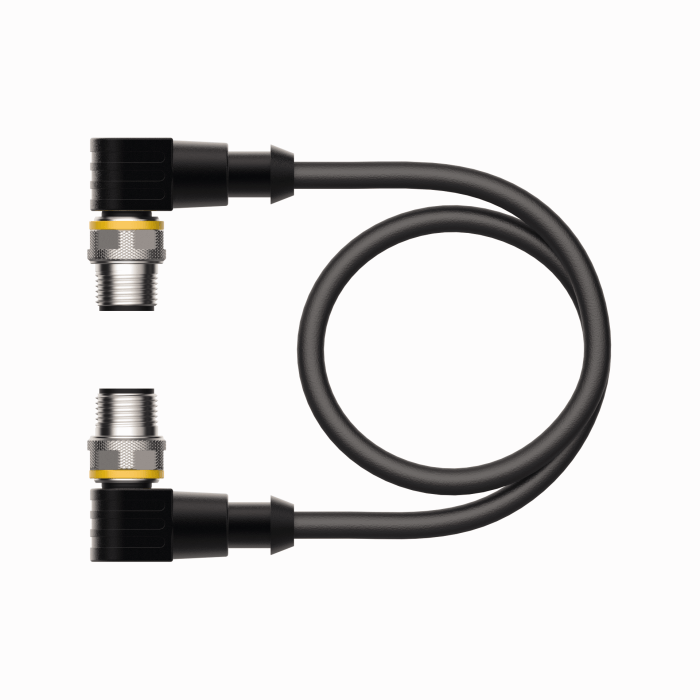

WSC-WSC5701-7.5M
Order ID no. 6932848
home
Home
Loading...
Technical Data
Network protocol
DeviceNet, CANopen
Cable length (m)
7.5
Application
Data
Design
Extension Cable

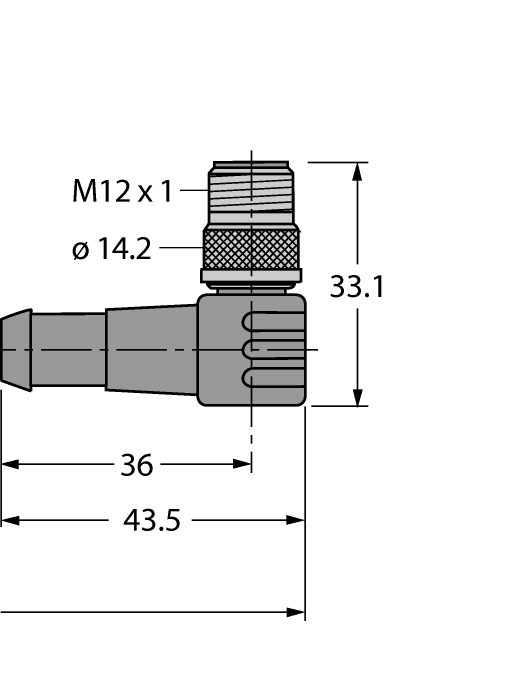

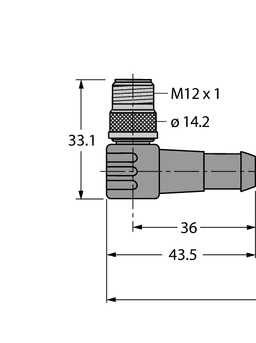

Connector A
Male, M12 × 1, Angled, A-coded
Number of pins
5
Coupling nut/screw material A
Brass

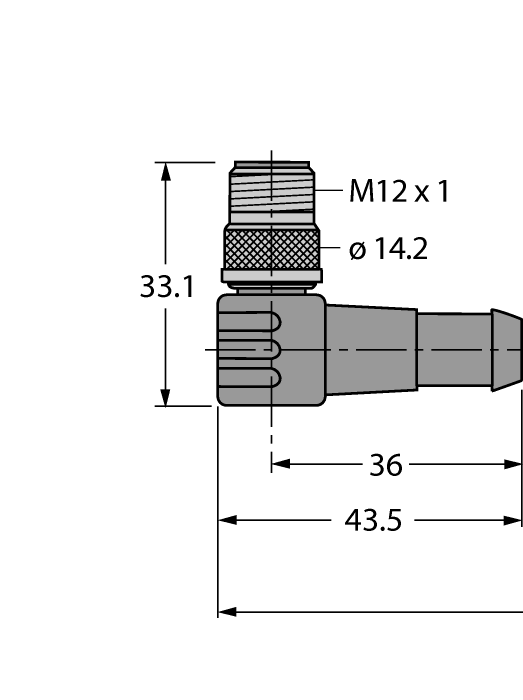

Connector B
Male, M12 × 1, Angled, A-coded
Number of Pins
5
Coupling nut/screw material B
Brass
Voltage (V)
60
Current (A)
4
Cable quality
PUR
Cable color
Anthracite
Approvals
UL
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
60
Core cross-section (mm²)
0.25
Number of Conductors
2
Key Features
Cable length (m)
7.5
Cable quality
PUR
Connector A
Male, M12 × 1, Angled, A-coded
Connector B
Male, M12 × 1, Angled, A-coded
