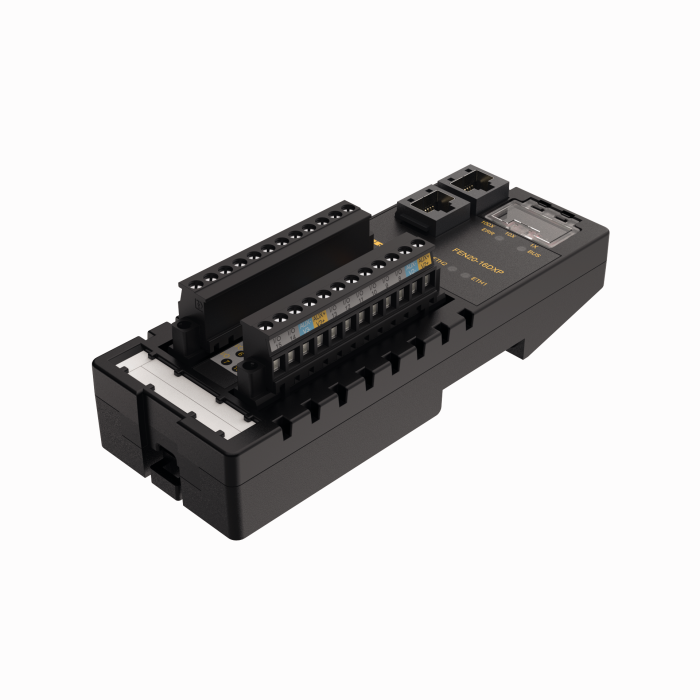

Compact IP20 multiprotocol Ethernet I/O module

FEN20-16DXP

Order ID no. 6931089

Protection class: IP20
Network protocol: Modbus TCP, PROFINET, EtherNet/IP
Approvals: cULus
Electrical connection: Screw terminals
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 70
Input type: PNP
Output type: PNP
Number of channels: 16
Installation area: non-Ex
Output voltage: 12…30 VDC
Connection technology signal: Screw terminal
Signal type: Digital input/output, Digital output, Digital input
Approvals: cULus, Class 1 Div. 2
Connection technology Ethernet: 2 × RJ45
Transmission rate Ethernet: 10/100 Mbps, full/half duplex, autonegotiation, autocrossing
