excom I/O System

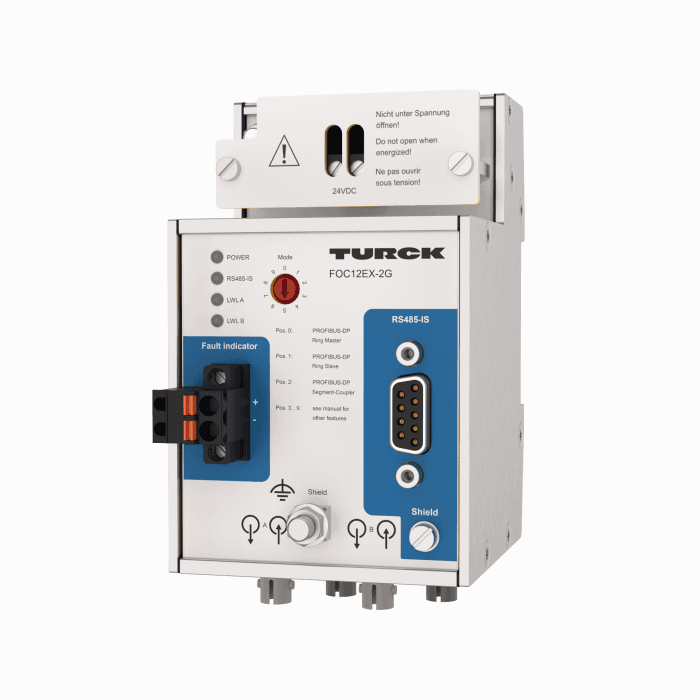

FOC12EX-2G

Order ID no. 100000552

Protection class: IP20
Network protocol: PROFIBUS-DP
Approvals: ATEX, cFMus, cFM, IECEx, KOSHA, UKCA, CE
Electrical connection: 1 × Ex e terminal, 2-pin, screw connection, 1 × 2-pin removable terminal block, spring-type connection, 4 × BFOC/2.5 (St) male connector
Housing material: Anodized aluminium
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 70
Number of channels: 2
Connection technology signal: D-Sub
