SX5-B6 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

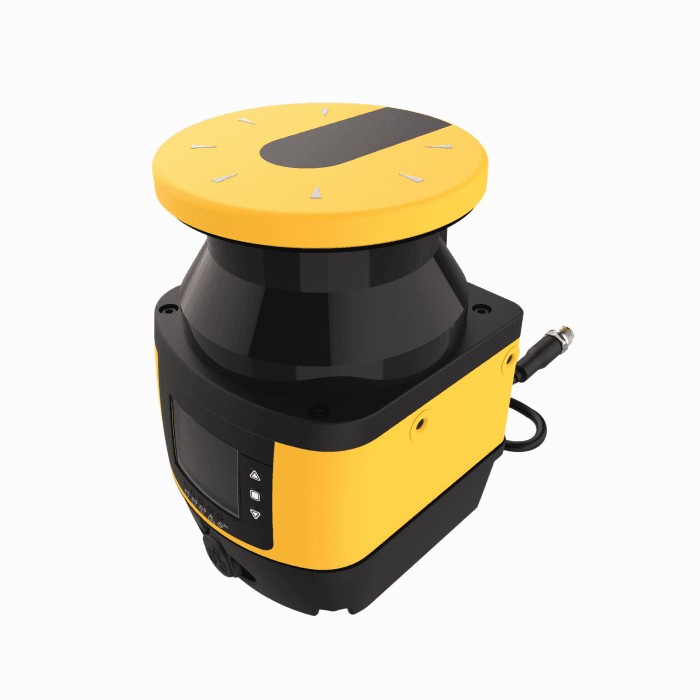

Safety Laser Scanner
SX5-B6
Order ID no. 3809737
home
Home
Loading...
Technical Data
Protection class
IP65
Cable length (m)
0.25
Design
Rectangular
Electrical connection
Cable with connector
Connector type
M12 × 1
Housing material
Aluminium
Housing quality
AL
Ambient temperature min. (°C)
0
Ambient temperature max. (°C)
50
Max. range (mm)
40000
Beam angle
275°
Function
Laser scanner
Operating voltage
DC
Optical resolution (mm)
30
Light type
IR
Construction size

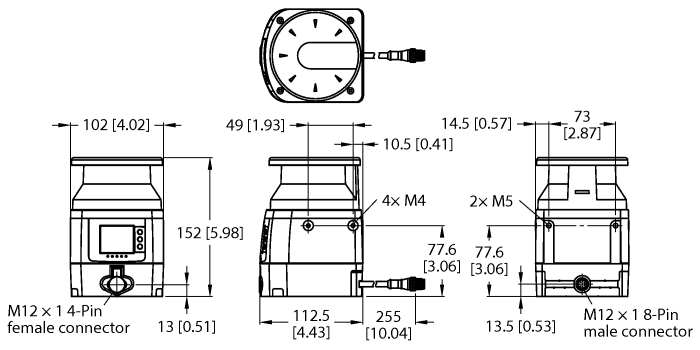

112.5 x 102 x 152 mm
Key Features
Optical resolution (mm)
30
Max. range (mm)
40000
In Stock
Price Group
F3
List Price
€4,659.00
home
Turck-Shop
Machine Safety
Safety Laser Scanners
SX5-B6
Item Total
€4,659.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
