Capacitive Sensor
BCE8-QP08-AN6X
Order ID no. 100016729
In Stock
Price Group
E1
List Price
€62.10
home
Home
Loading...
Technical Data
Protection class
IP65
Switching element function
NO contact
Output function
NPN
Cable length (m)
2
Approvals
UL
Design
Rectangular
Electrical connection
Cable
Housing material
Plastic
Housing quality
PP
Ambient temperature min. (°C)
-30
Ambient temperature max. (°C)
70
Measuring principle
Capacitive
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
8

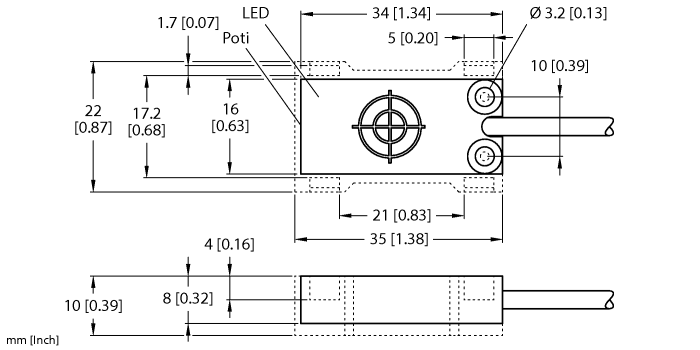

Construction size
34 x 16 x 8 mm
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
8
