BC2-EM08-UN8X | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

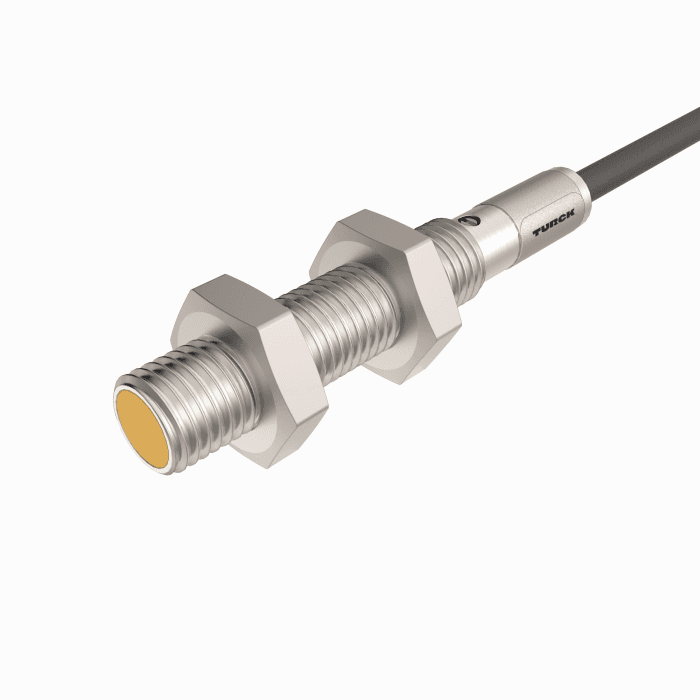

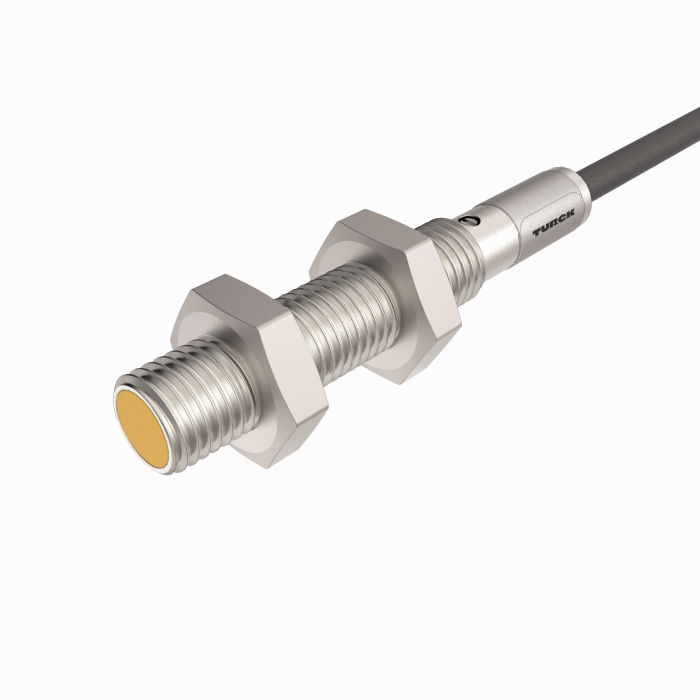

Capacitive Sensor
BC2-EM08-UN8X
Order ID no. 100021822
In Stock
Price Group
E1
List Price
€160.80
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO/NC (NO pre-set)
Output function
NPN
Cable length (m)
2
Design
Threaded barrel
Medium
liquids, Bulk goods
Detection type
medium contact
Electrical connection
Cable
Housing material
Stainless steel
Media temperature min. (°C)
-25
Media temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Measuring principle
Capacitive
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
2
Construction size
M8 x 1
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
2
