RI360P1-QR20-9F16B-0.3-DT04-6PMB | TURCK - Your Global Automation Partner

RI360P1-QR20-9F16B-0.3-DT04-6PMB

RI360P1-QR20-9F16B-0.3-DT04-6PMB

Thumbnail for RI360P1-QR20-9F16B-0.3-DT04-6PMB

Thumbnail for RI360P1-QR20-9F16B-0.3-DT04-6PMB

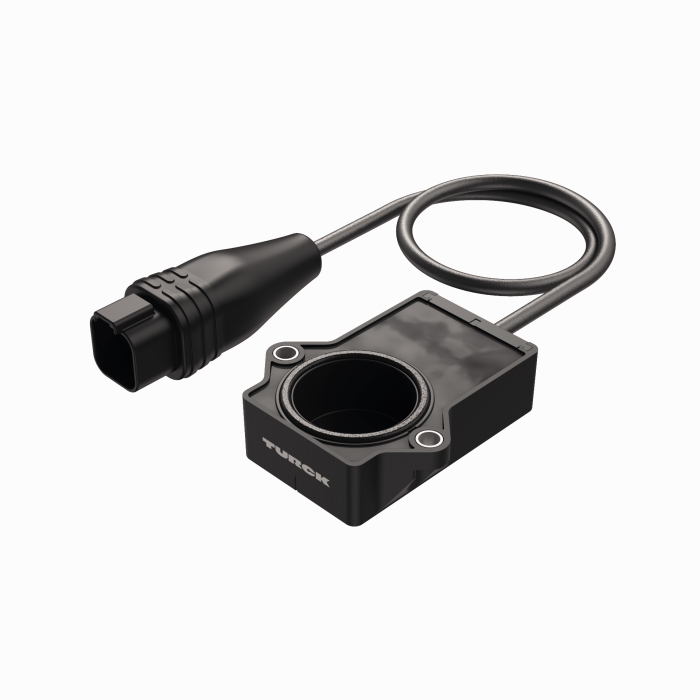

Miniature encoder

RI360P1-QR20-9F16B-0.3-DT04-6PMB

Order ID no. 100027543

In Stock
List Price	€143.50

homeHome
Loading...

Protection class: IP68, IP69K
Cable length (m): 0.4
Design: Rectangular
Communication protocol: SAE J1939
Electrical connection: Cable with connector
Connector type: Deutsch DT04-6PMB
Housing material: Plastic
Housing quality: Ultem
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 85
Measuring principle: Inductive
Operating voltage: DC
Output type: Absolute singleturn
Shaft Type: Blind hole shaft
Shaft diameter D (mm): 6, 6.35
Flange type: Flange without mounting element
Measuring range: 0…360°

Key Features

Output type: Absolute singleturn
Shaft diameter D (mm): 6, 6.35
Shaft Type: Blind hole shaft

Item Total€143.50

Quantity

homeTurck-Shop
Sensors
Encoders
RI360P1-QR20-9F16B-0.3-DT04-6PMB
