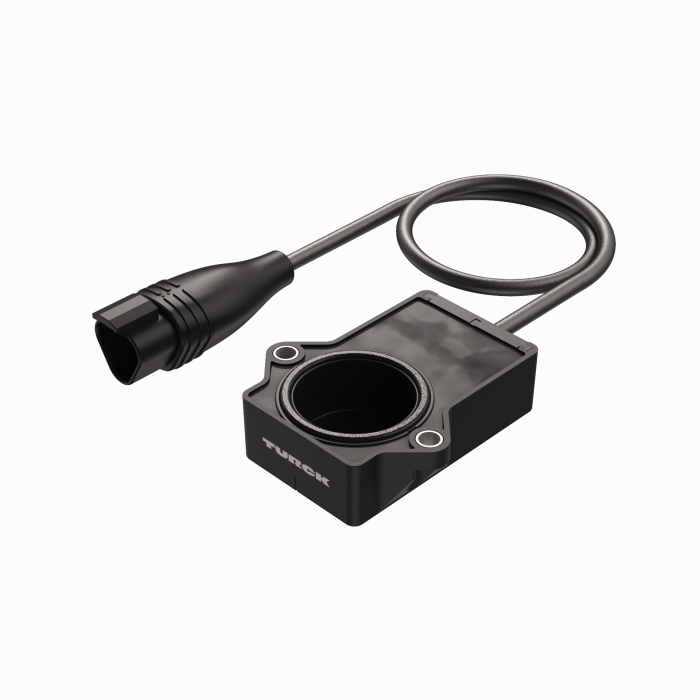

Miniature Encoder
RI20P1-QR20-LU4X2-0.15-DT04-3PMB
Order ID no. 100028547
In Stock
List Price
€106.30
home
Home
Loading...
Technical Data
Protection class
IP68, IP69K
Output function
Analog output
Cable length (m)
0.25
Design
Rectangular
Electrical connection
Cable with connector
Connector type
Deutsch DT04-3PMB
Housing material
Plastic
Housing quality
Ultem
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
85
Measuring principle
Inductive
Operating voltage
DC
Output type
Absolute singleturn
Shaft Type
Blind hole shaft
Shaft diameter D (mm)
6, 6.35
Flange type
Flange without mounting element
Measuring range
-10…10°
Key Features
Output type
Absolute singleturn
Shaft diameter D (mm)
6, 6.35
Shaft Type
Blind hole shaft
