RES-108B10T-9E19B-B3M12 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

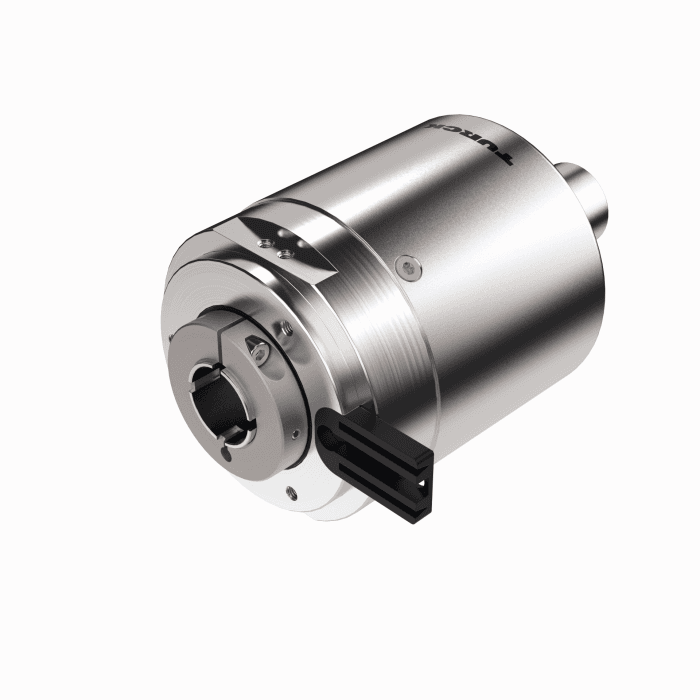

Absolute Rotary Encoder - Singleturn
RES-108B10T-9E19B-B3M12
Order ID no. 100046569
home
Home
Loading...
Technical Data
Protection class
IP67
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
80
Electrical connection
Connector
Housing material
Aluminium
Communication protocol
PROFINET
Connector type
3 x M12
Measuring range
0…360°
Output type
Absolute singleturn
Shaft Type
Blind hole shaft
Shaft diameter D (mm)
10
Flange diameter (mm)
58
Flange type
Flange with mounting element
Measuring principle
Optical
Key Features
Output type
Absolute singleturn
Flange diameter (mm)
58
Shaft diameter D (mm)
10
Shaft Type
Blind hole shaft
home
Turck-Shop
Sensors
Encoders
RES-108B10T-9E19B-B3M12
In Stock
Price Group
F3
List Price
€720.00
Item Total
€720.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
