RES-108B15E-9E19B-B3M12 | TURCK - Your Global Automation Partner

RES-108B15E-9E19B-B3M12

RES-108B15E-9E19B-B3M12

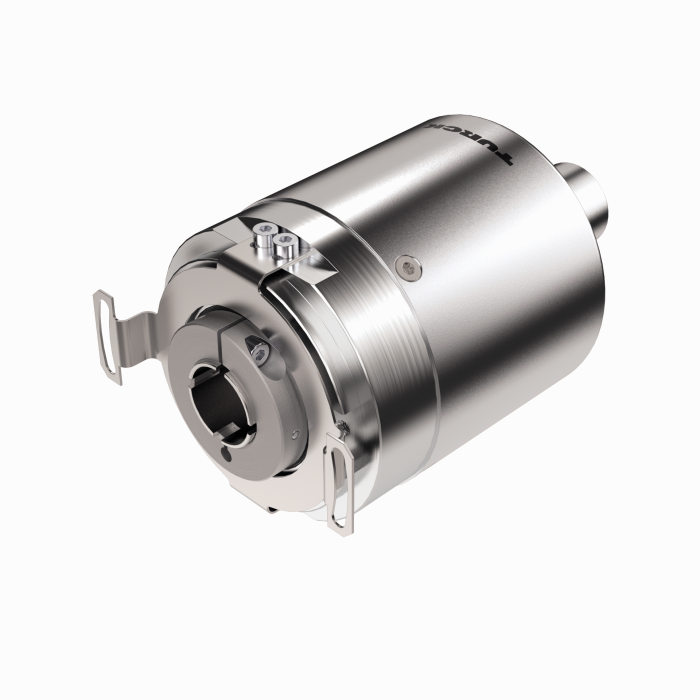

Thumbnail for RES-108B15E-9E19B-B3M12

Thumbnail for RES-108B15E-9E19B-B3M12

Absolute Rotary Encoder - Singleturn

RES-108B15E-9E19B-B3M12

Order ID no. 100046575

homeHome
Loading...

Protection class: IP67
Communication protocol: PROFINET
Electrical connection: Connector
Connector type: 3 x M12
Housing material: Aluminium
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 80
Measuring principle: Optical
Output type: Absolute singleturn
Shaft Type: Blind hole shaft
Shaft diameter D (mm): 15
Flange diameter (mm): 63
Flange type: Flange with stator coupling
Measuring range: 0…360°

Key Features

Output type: Absolute singleturn
Flange diameter (mm): 63
Shaft diameter D (mm): 15
Shaft Type: Blind hole shaft

In Stock
List Price	€780.00

homeTurck-Shop
Sensors
Encoders
RES-108B15E-9E19B-B3M12

Item Total€780.00

Quantity

Contact Support
