RI360P0-QR24M0-5000X2-H1181

RI360P0-QR24M0-5000X2-H1181

Thumbnail for RI360P0-QR24M0-5000X2-H1181

Thumbnail for RI360P0-QR24M0-5000X2-H1181

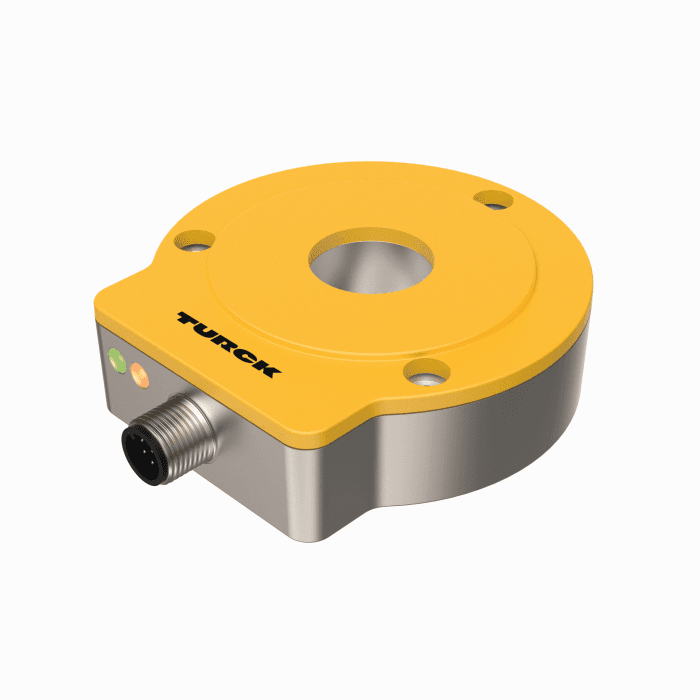

Contactless Encoder

RI360P0-QR24M0-5000X2-H1181

Order ID no. 1593159

In Stock
Price Group	G1
List Price	€265.80

homeTurck-Shop
Sensors
Encoders
RI360P0-QR24M0-5000X2-H1181

Protection class: IP68, IP69K
Output function: Push-Pull/HTL
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Metal/plastic
Housing quality: ZnAlCu1/PBT-GF30-V0
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 85
Measuring principle: Inductive
Operating voltage: DC
Output type: Incremental
Shaft Type: Hollow shaft
Shaft diameter D (mm): 6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20
Flange type: Flange without mounting element
Resolution incremental (ppr): 5000

Key Features

Output type: Incremental
Shaft diameter D (mm): 6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20
Shaft Type: Hollow shaft
