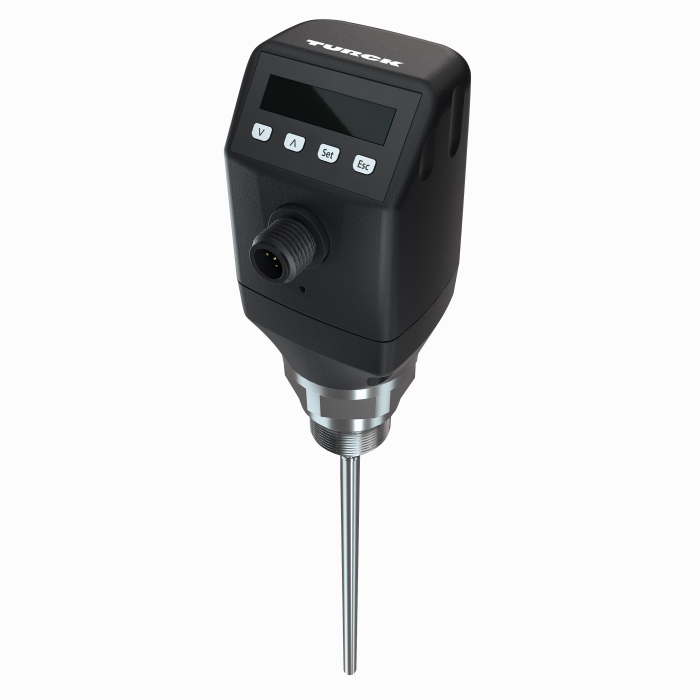

Level Sensor

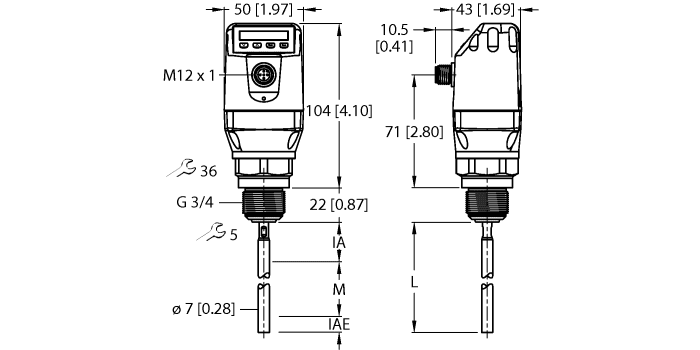

LS-551-0500-LIU22PN8X-H1151
Order ID no. 100001860
In Stock
Price Group
D2
List Price
€467.20
home
Turck-Shop
Sensors
Level Sensors
LS-551-0500-LIU22PN8X-H1151
Technical Data
Protection class
IP67
Switching element function
NO/NC
Output function
PNP/NPN, analog output
Approvals
UL
Design
With display
Process connection
G 3/4'' male thread
Medium
liquids
Detection type
medium contact
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
PBT
Media temperature min. (°C)
-20
Media temperature max. (°C)
100
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
60
Measuring principle
Guided microwave
Operating voltage
DC
Measuring range (mm)
500 mm
Key Features
Communication protocol
IO-Link
Measuring range (mm)
500 mm
Process connection
G 3/4'' male thread
Output function
PNP/NPN, analog output
Item Total
€467.20
