SAB-497RB1LP6-Q5E | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

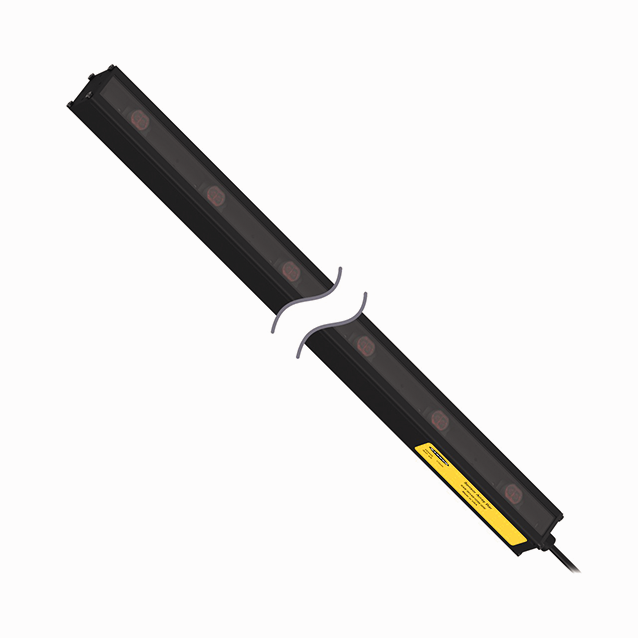

Photoelectric Sensor
SAB-497RB1LP6-Q5E
Order ID no. 3805074
In Stock
Price Group
F3
List Price
€651.00
home
Home
Loading...
Technical Data
Protection class
IP50
Switching element function
NO contact
Output function
PNP/NPN
Cable length (m)
0.15
Design
Rectangular
Electrical connection
Cable with connector
Connector type
M12 × 1
Housing material
Anodized aluminium
Housing quality
AL
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
55
Max. range (mm)
1000
Function
Retroreflective Sensor
Scan field (mm)
497
Optical resolution (mm)
82.6
Light type
Red polarized
Construction size
38 x 36 x 497 mm
Cascadable
No
Number of beams
6
Key Features
Light type
Red polarized
Output function
PNP/NPN
Function
Retroreflective Sensor
Max. range (mm)
1000
