PT40R-1041-I2-H1141 | TURCK - Your Global Automation Partner
Pressure Transmitter
PT40R-1041-I2-H1141
Order ID no. 100002972
In Stock
List Price
€130.50
home
Home
Loading...
Technical Data
Protection class
IP67
Output function
Analog output current
Approvals
cULus
Design
Without display

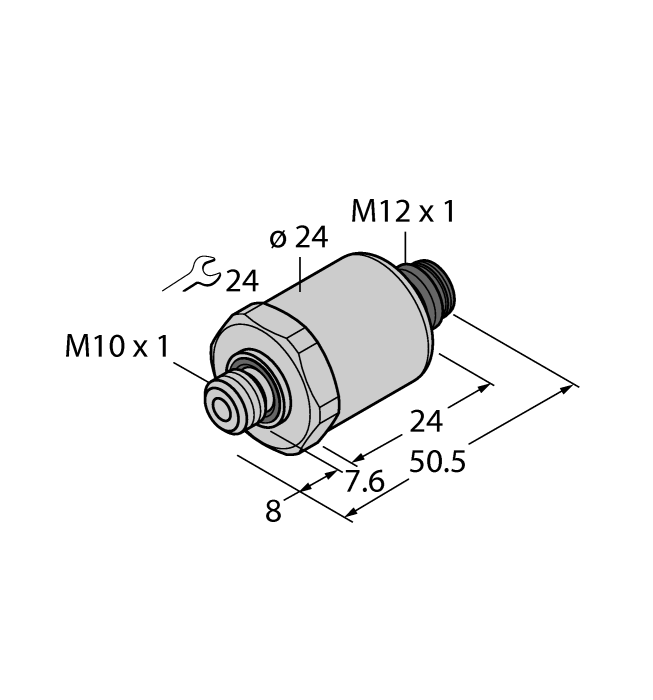

Process connection
M10 × 1 DIN 3852-E (rear sealing)
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature min. (°C)
-40
Media temperature max. (°C)
125
Ambient temperature min. (°C)
-30
Ambient temperature max. (°C)
85
Operating voltage
DC
Electrical output
Current output (2-wire)
Pressure type
Relative pressure
Material pressure transducer
Ceramic Al₂O₃
Pressure range
0…40 bar
Key Features
Electrical output
Current output (2-wire)
Process connection
M10 × 1 DIN 3852-E (rear sealing)
Pressure range
0…40 bar
