PT400R-2105-I2-DT043P | TURCK - Your Global Automation Partner

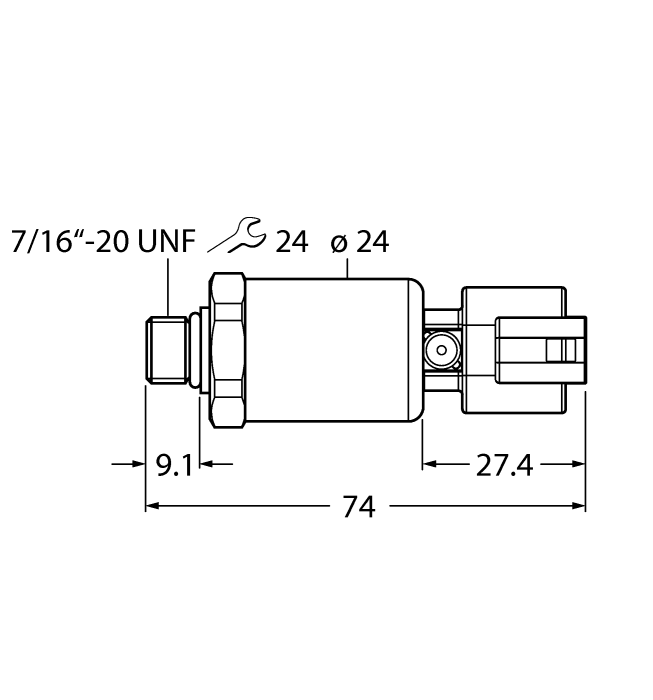

Pressure Transmitter

PT400R-2105-I2-DT043P

Order ID no. 100003676

homeHome
Loading...

Protection class: IP69K
Output function: Analog output current
Design: Without display
Process connection: 7/16″-20 UNF male thread
Electrical connection: Connector
Connector type: Deutsch DT04-3P
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature min. (°C): -40
Media temperature max. (°C): 125
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 100
Operating voltage: DC
Electrical output: Current output (2-wire)
Pressure type: Relative pressure
Material pressure transducer: Stainless steel 1.4404 (AISI 316L)
Pressure range: 0…400 bar

Key Features

Electrical output: Current output (2-wire)
Process connection: 7/16″-20 UNF male thread
Pressure range: 0…400 bar

In Stock
List Price	€133.40

homeTurck-Shop
Sensors
Pressure Sensors
PT400R-2105-I2-DT043P

Item Total€133.40

Quantity

Contact Support
