PT250R-2105-I2-H1144 | TURCK - Your Global Automation Partner
Pressure Transmitter

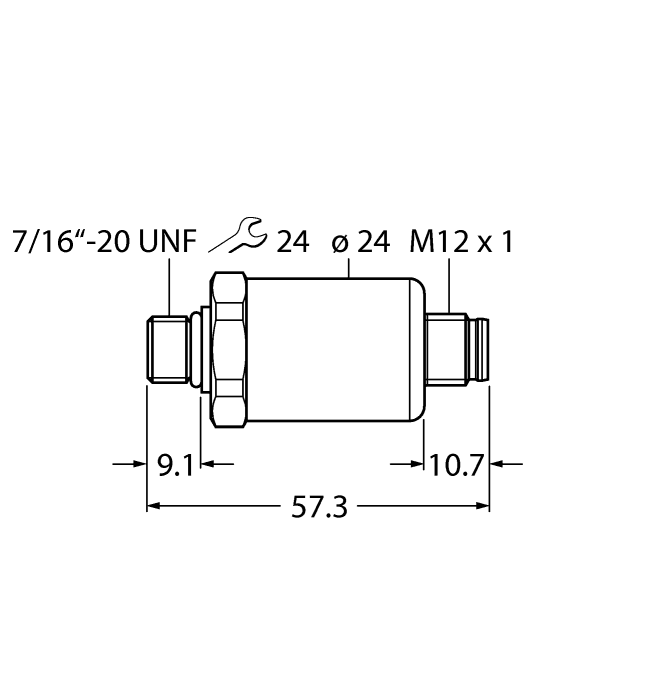

PT250R-2105-I2-H1144
Order ID no. 100023803
In Stock
Price Group
J1
List Price
€138.10
home
Home
Loading...
Technical Data
Protection class
IP69K
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
100
Design
Without display
Electrical connection
Connector
Operating voltage
DC
Output function
Analog output current
Housing material
Stainless-steel/Plastic
Connector type
M12 × 1
Housing quality
1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Process connection
7/16″-20 UNF male thread
Media temperature min. (°C)
-40
Media temperature max. (°C)
125
Pressure type
Relative pressure
Electrical output
Current output (2-wire)
Material pressure transducer
Stainless steel 1.4404 (AISI 316L)
Pressure range
0…250 bar
Key Features
Electrical output
Current output (2-wire)
Process connection
7/16″-20 UNF male thread
Pressure range
0…250 bar
