Q120RA-EU-AF | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

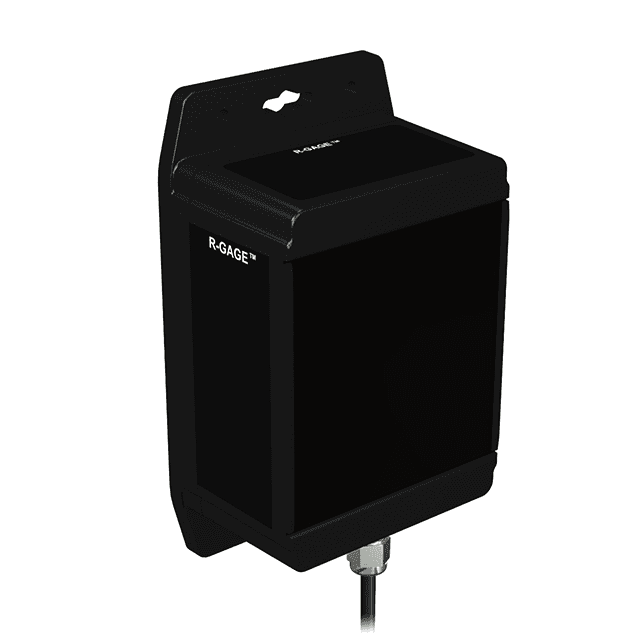

Radar Sensor
Q120RA-EU-AF
Order ID no. 3054279
In Stock
Price Group
F3
List Price
€1,854.00
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO/NC programmable
Output function
PNP/NPN
Cable length (m)
2
Design
Rectangular
Electrical connection
Cable
Housing material
Plastic
Housing quality
ABS/Polycarbonate
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
65
Max. range (mm)
12000
Beam angle
24° x 50°
Function
Proximity switch
Operating voltage
DC
Antenna connection
Internal, planar

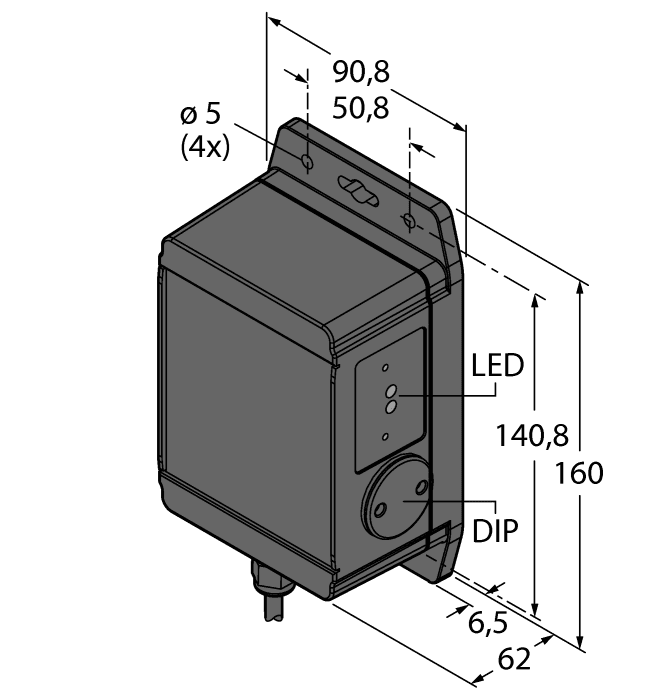

Construction size
62 x 90.8 x 159.5 mm
Key Features
Electrical connection
Cable
Output function
PNP/NPN
Beam angle
24° x 50°
Max. range (mm)
12000
