TP-103A-G1/8-H1141-L013 | TURCK - Your Global Automation Partner
Temperature Detection

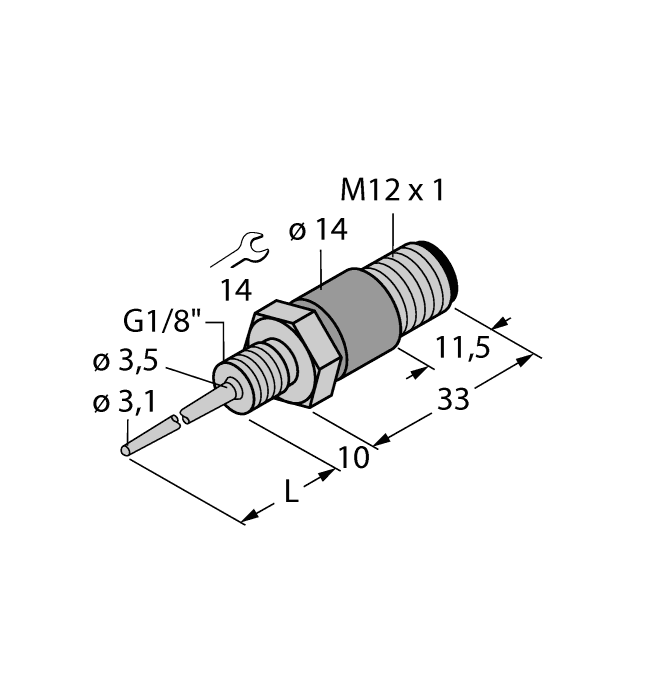

TP-103A-G1/8-H1141-L013
Order ID no. 9910400
In Stock
Price Group
D2
List Price
€48.00
home
Home
Loading...
Technical Data
Protection class
IP67
Approvals
cULus
Design
Temperature probe
Process connection
G 1/8'' male thread
Immersion depth L (mm)
13
Detection type
medium contact
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless steel
Housing quality
1.4404 (AISI 316L)
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
120
Mounting conditions
Immersion sensor
Measuring range
-50…120 °C
Electrical output
Resistance
Key Features
Electrical output
Resistance
Process connection
G 1/8'' male thread
Measuring range
-50…120 °C
